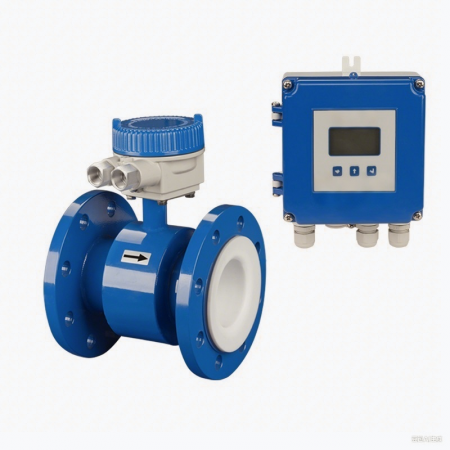

RBHEF-BC Series Electromagnetic Flow Meter for Batching Control is customized for filling, petroleum, chemical, pharmaceutical and other fields. The display interface is clear, setting is simple, operation is convenient, and it easily achieves batch (quantitative) control function.
Highlighting the key benefits:
High Precision Measurement
Excellent Stability
Strong Anti-interference Capability
Convenient Installation & Maintenance
Bluetooth Connectivity
Multiple Communication Options
RBHEF-BC Series Electromagnetic Flow Meter for Batching Control Principle:
RBHEF-BC Series Electromagnetic Flow Meter for Batching Control Features:
Interface Display: Forward/Reverse Flow, Instantaneous Flow, Percentage Flow, Flow Velocity
Operation Method: Buttons, Bluetooth
Display Language: Chinese, English
Current Output: 4-20mA, Pulse
Protection Rating: IP65, IP67 (Sensor only)
Communication Protocol: HART, MODBUS, BACNET
Power Supply: 220VAC, 24VDC, 100～240VAC
Alarm Function: Empty Pipe Alarm, Reverse Flow Alarm, Upper/Lower Limit Alarm
Accuracy: 0.2%, 0.3%, 0.5%
RBHEF-BC Series Electromagnetic Flow Meter for Batching Control Specification:
Explosion-proof Grade: None
Installation Structure: Split type
Measurement Accuracy: ±0.2% ~ ±0.5%
Medium Temperature: -20℃ ~ +180℃
Ambient Temperature: -25℃ ~ +60℃
Relative Humidity: 5% ~ 95%
Pipe Size: DN10 ~ DN2000
Electrode Material: Stainless steel, Hastelloy, Titanium, Tantalum, etc.
Lining Material: PTFE, PFA, Rubber, Ceramic
Process Connection: Flange, Clamp, Threaded
RBHEF-BC Series Electromagnetic Flow Meter for Batching Control Model Selection:
RBHEF-BC Series Electromagnetic Flow Meter for Batching Control Applications:
Filling Systems
Petroleum Industry
Chemical Production
Pharmaceutical Industry
Water Treatment Facilities
Food & Beverage
Energy Management
Metallurgical Industry
