Optimizing Large-Scale Pipeline Monitoring: The RBEF-I Insertion Electromagnetic Flow Meter Solution
Introduction
Measuring flow in large-diameter pipelines (from DN50 up to DN8000) poses significant challenges for industrial engineers: prohibitive costs of full-bore meters, heavy installation requirements, and the need for system downtime. The RBEF-I Series Insertion Electromagnetic Flow Meter is specifically engineered to solve these issues, providing a high-performance, cost-effective alternative for modern water and process management.
1. Advanced Sensing Technology for Massive Pipelines
The RBEF-I operates on Faraday’s Law of Induction, focusing on the local flow velocity at a specific depth (1/8D) within the pipe.
• Unmatched Pipe Range: While traditional meters become exponentially expensive as size increases, the RBEF-I maintains a consistent hardware cost even for massive DN8000 conduits.
• Fluid Independence: Measurements are unaffected by changes in fluid pressure, temperature, density, or viscosity, provided the conductivity remains ≥ 20 µS/cm.
2. Engineered for Maintenance Without Downtime

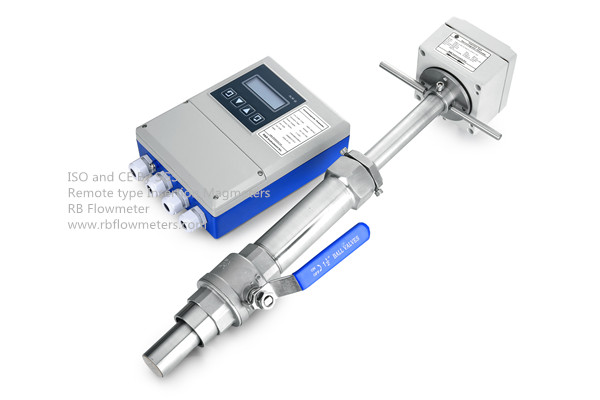

One of the RBEF-I’s most powerful features is its Online Hot-Tap Installation capability.
• Zero Downtime: The ball-valve installation design allows the sensor to be inserted or removed under pressure. Engineers can perform maintenance or calibration without shutting down the water supply or industrial process.
• Installation Flexibility: Whether it’s a standard fixed-length installation or a portable monitoring point, the RBEF-I integrates easily into existing infrastructures.
3. Superior Material Science & Durability
Built to withstand aggressive industrial environments, the RBEF-I offers a range of high-grade materials:
• Electrodes: Choice of 316L, Hastelloy C, Titanium, or Tantalum to handle everything from clean water to highly corrosive acids.
• Protection Ratings: Standard IP65 for general use, with a dedicated IP68 (Separated Type) version for underground or submerged applications.
• Structural Integrity: The probe is designed to resist high-velocity impacts and vibration, ensuring a service life that exceeds traditional mechanical meters.
4. Key Technical Specifications
• Pipe Diameter: DN50 – DN8000
• Accuracy: ±1.5% (standard), with a flow velocity range of 0.5m/s to 10m/s.
• Nominal Pressure: 0.6MPa to 1.6MPa (Standard), with higher ratings available upon request.
• Medium Temperature: Available in versions up to 80°C (Standard) and 120°C (High-Temp Type).
5. Ideal Applications
• Agriculture: Flow control in large-diameter irrigation mains.
Conclusion
The RBEF-I Series is not just a measurement device; it is a strategic asset for reducing CAPEX and OPEX in large-scale flow monitoring. By combining "Hot-Tap" convenience with high-grade chemical resistance, RB Flowmeter delivers a solution that keeps your processes running and your data accurate.
