RBHEF-BC: Ultra-low Conductivity Magmeter for Batching Control

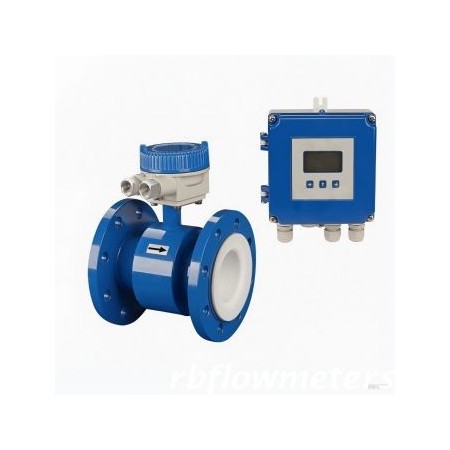

RBHEF-BC series ultra-low conductivity electromagnetic flowmeter for batching
  • RBHEF-BC series ultra-low conductivity electromagnetic flowmeter for batching

RBHEF-BC Series Electromagnetic Flow Meter for Batching Control is customized for filling, petroleum, chemical, pharmaceutical and other fields. The display interface is clear, setting is simple, operation is convenient, and it easily achieves batch (quantitative) control function. Specifically engineered for ultra-low conductivity liquids, the RBHEF-E/BC series breaks the limits of traditional EMFs, ensuring stable batching and dosing in complex chemical environments.

Highlighting the key benefits:

  • High Precision Measurement

  • Excellent Stability

  • Strong Anti-interference Capability

  • Convenient Installation & Maintenance

  • Bluetooth Connectivity

  • Multiple Communication Options

While standard meters fail in pure water applications, the RBHEF-BC ensures a stable zero-point and high accuracy even stable zero-point and high accuracy even from 1 μS/cm.




Description

  • Principle
  • Features
  • Specification
  • Model Selection
  • Applicants
  • Download
Principle

RBHEF-BC Series Electromagnetic Flow Meter for Batching Control Principle:

Features

RBHEF-BC Series Electromagnetic Flow Meter for Batching Control Features:

(Ultra-low Conductivity Measurement: Reliable performance for fluids with conductivity down to 1 μS/cm)

  • Interface Display: Forward/Reverse Flow, Instantaneous Flow, Percentage Flow, Flow Velocity

  • Operation Method: Buttons, Bluetooth(Wireless configuration via Bluetooth – no need to open the cover in hazardous areas.)

  • Display Language: Chinese, English

  • Current Output: 4-20mA, Pulse

  • Protection Rating: IP65, IP67 (Sensor only)

  • Communication Protocol: HART, MODBUS, BACNET

  • Power Supply: 220VAC, 24VDC, 100～240VAC

  • Alarm Function: Empty Pipe Alarm, Reverse Flow Alarm, Upper/Lower Limit Alarm

  • Accuracy: 0.2%, 0.3%, 0.5%

  • High Precision Batching: Dedicated algorithms for filling and dosing with  +/-0.2% accuracy.

Specification

RBHEF-BC Series Electromagnetic Flow Meter for Batching Control Specification:

  • Explosion-proof Grade: None

  • Installation Structure: Split type

  • Measurement Accuracy: ±0.2% ~ ±0.5%

  • Medium Temperature: -20℃ ~ +180℃

  • Ambient Temperature: -25℃ ~ +60℃

  • Relative Humidity: 5% ~ 95%

  • Pipe Size: DN10 ~ DN2000

  • Electrode Material: Stainless steel, Hastelloy, Titanium, Tantalum, etc.

  • Lining Material: PTFE, PFA, Rubber, Ceramic

  • Process Connection: Flange, Clamp, Threaded

Model Selection

RBHEF-BC Series Electromagnetic Flow Meter for Batching Control Model Selection:


Applicants

RBHEF-BC Series Electromagnetic Flow Meter for Batching Control Applications:

  • Filling Systems

  • Petroleum Industry

  • Chemical Production

  • Pharmaceutical Industry

  • Water Treatment Facilities

  • Food & Beverage

  • Energy Management

  • Metallurgical Industry

  • Deionized water systems

  • High-speed automatic filling lines

  • Low-conductivity chemical additives

Download

RBHEF-BC Series Electromagnetic Flow Meter for Batching Control Download:

Request Data Sheet
