The RBLTF series turbine flow meter is based on the principle of torque balance and is a speed flow meter. Engineered for precise measurement of steam, gas, and liquids. Features advanced noise suppression, no moving parts, and maintenance-free reliability for industrial piping. It has the characteristics of simple structure, light weight, high precision, good repeatability, sensitive response, easy installation, maintenance and use. It is widely used in petroleum, chemical industry, etc.
It is an ideal instrument for flow measurement and energy saving in metallurgy, water supply, paper making and other industries.
The sensor is used in conjunction with the display instrument and is suitable for measuring stainless steel 1Cr18Ni9Ti, 2Cr13 and corundum Al2O3,
Carbide is a liquid that does not corrode and has no fibers, particles or other impurities. If it is matched with a display instrument with special functions, it can also be
Perform quantitative control, over-quantity alarm, etc. By selecting the explosion-proof type (ExmIIT6) of this product, it can be used in environments with explosive hazards.
The sensor is suitable for media with a viscosity less than 5×10-6m2/s at operating temperature. Forty greater than 5×10-6m2/s,
The sensor must be calibrated with real l liquids with a viscosity before use.
If the user needs a special form of sensor, the order can be negotiated. If an explosion-proof sensor is required, please specify it in the order.
High-performance vortex flow meter based on the Karman principle.

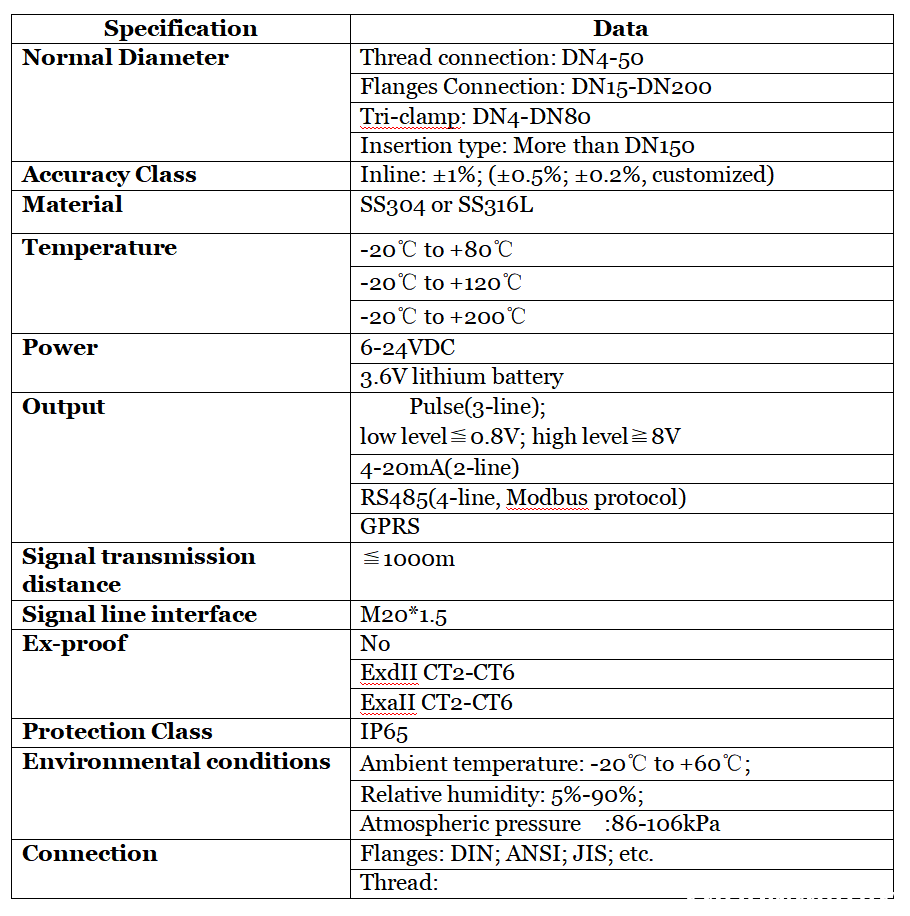

Key Specification:
• w meter (up to ±0.2%) designed for non-corrosive liquids
Featuring a compact SS3• leum, chemical, and water supply industries
