Economical Inductive Magnetic flow meter

MIK-Economical Magmeter
  • MIK-Economical Magmeter

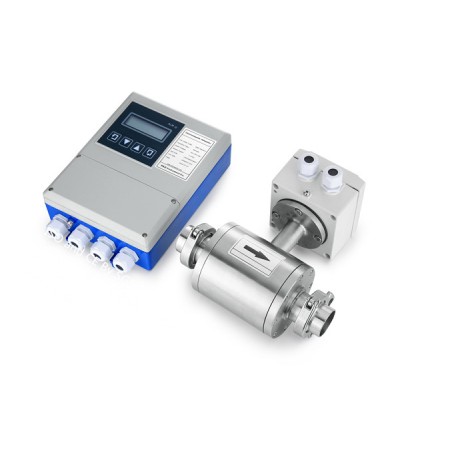

The RBEF-E Economical Inductive Magnetic flow meter extremely compact, low cost, inductive magnetic flow meter(including Transmitter and sensor), the Economical Inductive Magnetic flow meter is the perfect solution for measuring the flow of conductive liquids in applications where reliability and low-pressure loss of a magmeter are desired at an economical price compared to higher end models. This magmeter measures flow using the magnetic-inductive principle. According to Faraday’s law of magnetic induction, current is induced into a conductor as it moves through a magnetic field. The amount of current induced is directly proportional to the velocity of the moving conductor.  A conductive liquid passing through the flowmeter body acts as the conductor. The flowmeter body contains a set of electromagnetic coils that generate the magnetic field. Electrodes mounted in the flowmeter body collect the current, whose magnitude is proportional to flow rate.



RBEF-E Economical Inductive Magnetic flow meter is special designed for food and beverages, Chemical and Pharmaceutical filling controller. The Magmeters is ideal for use in the field of mechanical engineering and plant construction,  No Moving Parts, RS485, Frequency and 4 to 20 mA Output, Maintenance-Free, Minimum inlet section requirements and the instrument is available in three different sizes. All Inductive Magnetic flow meters will be delivered with a works calibration certificate.

RBEF-E Magnetic inductive flowmeters are designed for applications such as liquid flow monitoring in industrial processes such as wastewater, mining and minerals, utilities, food and beverage, and pharmaceuticals.


Description

  • Principle
  • Features
  • Specification
  • Model Selection
  • Applicants
  • Download
Principle

The magnetic flow meter, also technically an electromagnetic flow meter or more commonly just called a mag meter. A magnetic field is applied to the metering tube, which results in a potential difference proportional to the flow velocity perpendicular to the flux lines. The physical principle at work is electromagnetic induction. The magnetic flow meter requires a conducting fluid, for example, water that contains ions, and an electrical insulating pipe surface, for example, a rubber-lined steel tube.

If the magnetic field direction were constant, electrochemical and other effects at the electrodes would make the potential difference difficult to distinguish from the fluid flow induced potential difference. To mitigate this in modern magnetic flowmeters, the magnetic field is constantly reversed, cancelling out the electrochemical potential difference, which does not change direction with the magnetic field. This however prevents the use of permanent magnets for magnetic flowmeters.


Features

RBEF-E Economical Inductive Magnetic flow meter Features:

  • High level accuracy

  • Batch control for filling control

  • Long life cycle with no moving parts to wear or break

  • Can be applied in applications dealing with contaminated media with no mechanical component in the flow

  •  Design enables high speed filling with minimal product loss

  • Obstruction free pipe cross-section yields low pressure drop

  • Unaffected by change in temperature, density, viscosity or concentration

  • Electronics Packages Include Frequency or Current Outputs, Adjustable Switches and Integral Totalizers or Batch Controller

Specification

 RBEF-E Economical Inductive Magnetic flow meter technical Specification:

  • Size: DN6 or 8mm or 10mm

  • Velocity range: 0.01m/s – 10 m/s

  • Accuracy: ±0.5% of RS (Velocity>0.6m/s) or ±3mm/s(Velocity≤0.6m/s)

  • Repeatability: 1/3 of accuracy

  • Media Conductivity: 20 ms/cm

  • Measuring Direction: Bi-directional measurement

  • Max Working Pressure: 1.0MPa

  • Max Working Temperature: 60℃

  • Liner: PE or PEEK

  • Body: PE or PEEK +SS316L

  • Electrodes: SS316L or HC

  • Enclosure: Aluminum

  • Connection: G1/2

  • Power supply: 24VDC, ≤100mA

  • LCD display: flow rate and total flow

  • Analog output: 4 – 20mA

  • Pulse output: 0 – 5K Hz

  • Relay Output: optional, 1 Relay 2A/30VDC

  • RS485: Optional

Model Selection

RBEF-E Economical Inductive Magnetic flow meter Model Selection:

RBEF Economic Electromagnetic Flow Meter Ordering Code

RBEF-

DN

-



-



-



-



-



-



-



-



-



-



-



-



-







1



2



3



4



5



6



7



8



9



10



11



12



13



14

15






1 Nominal Diameter(mm)/ [inches] (1)

006[1/4”]

0100 [4”]







2 Flange Rating (1)

10

1.0 MPa

DN6 8, 10









3 Electrode Material

1

316L Stainless Steel

3

Hastelloy C-22







4 Lining Material

1

PE

2

PEEK







5 Grounding and Lining Protection

0

Flange ground







6 Max. Process Temperature

A

60°C

All Linings













7 Environmental Protection Class

1

IP65

2

IP67







8 Explosion Proofing

1

None







9 Configuration – sensor/transmitter

1

Compact







10 Power Supply

D

DC: 18 … 36 VDC







11 Display and Programming

2

2 line LCD display + keypad programming

3

K type, no display







12 Output and Input

0

Basic Configuration pulse and contact outputs)

2

Basic Configuration + RS485

3

Temperature

4











13 Calibration Specification

1

3 point, 0.5% accuracy

3

Special







14 Flow Tube Configuration

S

Screw

F

Flanged

A

Tri-clamp







15 Special Function

0

No

R

IR Remote

T

Power off timer

H

Cumulative hours

Q

Quantitative control

J

Relay Output



Applicants

RBEF-E Economical Inductive Magnetic flow meter Applications

  • Food & Beverages:

             Modular dosing system for filling conductive liquids in packaging machinery(Flow Meter Filling Machine)

             Water

             Soft drinks

             Milk and Dairy

             Beer

             Fruit juices and other fluids with fibres

  •    Chemical Process Control;
  •     Pharmaceutical,
